HYPERBOWL Munich

A full LED Volume suitable for large scale scenic work, automotive, advertisement and events.

LED Volume

HYPERBOWL Munich @ Penzing Studios

Seamless 270° LED Stage

260 sqm LED Ceiling + 240 sqm LED Wall

Native Unreal Environment, multi-camera enabled

Volume Specs

Total LED surface: 500 sq m (5,380 sq ft)
Floor space: 20.32 x 14.32 m (66' 8" × 46' 11.8")
Inside Volume Studio Surface: Approx. 290 sq m (3,121 sq ft)
Studio clearance: 5.43 m (17' 9.8")
Pixel Pitch: 2.6 mm
Brightness: 1500 Nits
Wide gamut (DCI-P3), Color calibrated workflow with ARRI, Sony and RED cameras

LED Horizon

Horizon Surface Area: 236.5 sq m (2,545 sq ft)
Total Dimensions: 43 x 5.45 m (141’ 0.9” x 17’ 0.7”)
Resolution: 16,512 x 2,112 pixels
Optional Gate: Up to 82.5 sq m (888 sqft)

LED Sky

Sky Surface Area: Approx. 294.5 sq m (3,170 sq ft)
Total Dimensions: 19 × 15.50 m (62' 4" × 50' 10.2")
Resolution: 7,296 × 5,952 pixels

Add-Ons

Dimensions can be extended depending on technical needs
Up to 23 load points in sky surface for additional lighting or rigging

Render Specs

Render Hardware

Render Nodes: 10x Output, 2x Frustum/Spares
GPU: NVIDIA RTX A6000
Processor: AMD Threadripper Pro 3975WX
Storage: 4TB NVMe Raid O
Network: 10GbE Network, 100GbE Mellanox

Render Software

Software Unreal Engine 5.2 Custom Build
Setup: 12x Render Nodes, 3x Control Nodes, 1x Tracking Server
Color Management: OCIO + ARRI VP Color Calibration implemented
Supported Frame rates: up to 60 fps
Additional artist workstations available

Download Specifications (PDF)

Seamless transition between LED Horizon and Sky

Closed LED Ceiling of the same 2.6mm LED material as the wall. You can do extreme wide shots and also low shots that show the ceiling. Reflections on cars and other glossy objects are all-encompassing and seamless. This cannot be achieved in smaller or differently configured LED stages. It also enables a faster and more comprehensive lightcard-workflow.

Multiple Camera Frustums

Without degradation of render performance through SMPTE 2110.

Custom Solutions

In-house technical crew able to develop custom integrations like turntable tracking, shadow projection via projectors etc.

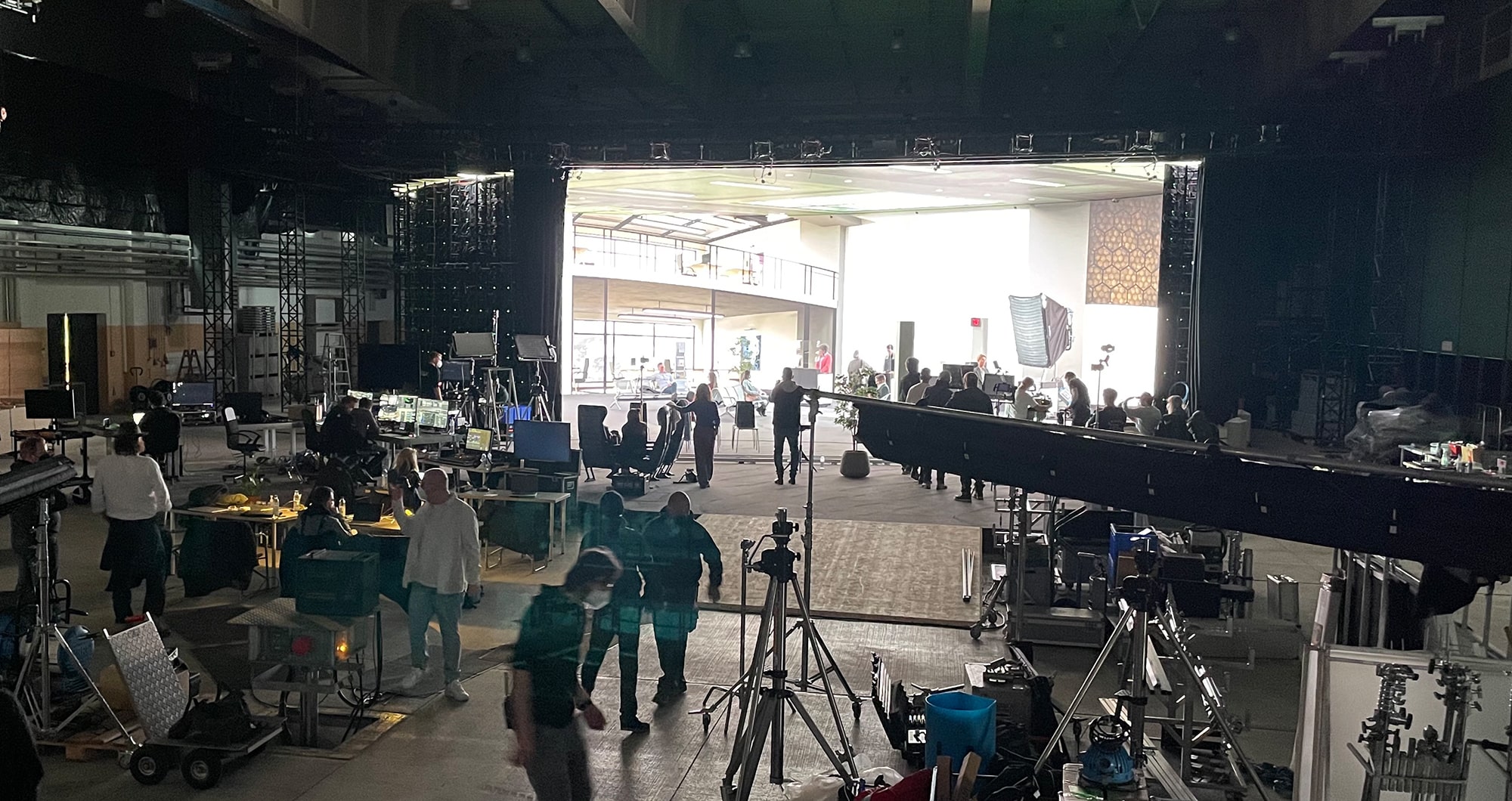

Studio

HYPERBOWL Munich is part of PENZING STUDIOS.

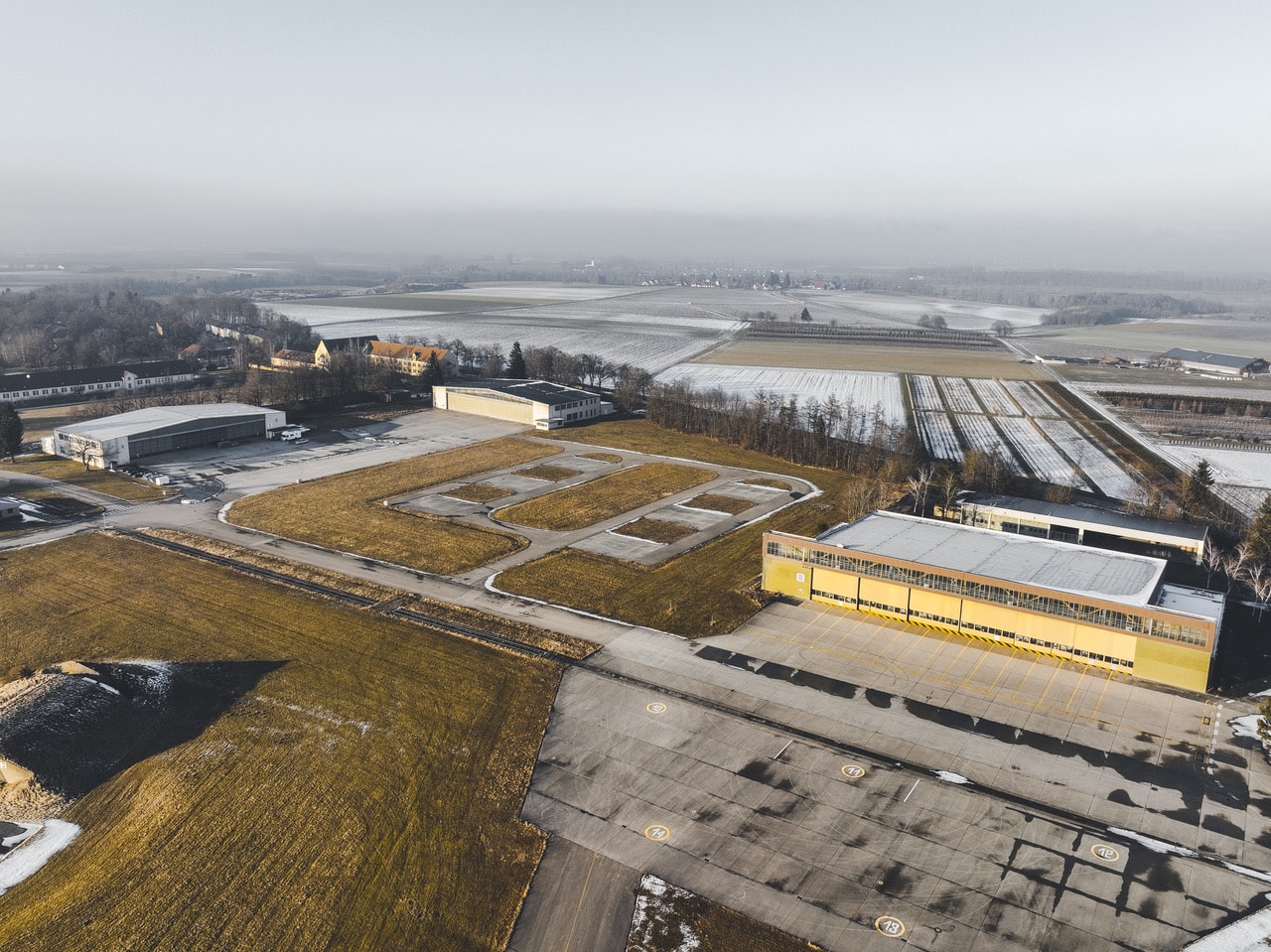

We are located in a refurbished helicopter hangar at the former military airbase in Penzing, 45 minutes outside of Munich. The studio can accommodate large-scale productions and complies with strict confidentiality requirements. Through Penzing Studios, large conventional studio spaces are available in direct vicinity, on the same backlot.
